Nebulizer is a drug delivery device used to administer medication in the form of a mist inhaled into the lungs. Nebulizers are commonly used for the treatment of asthma, cystic fibrosis, Chronic obstructive pulmonary disease (COPD) and other respiratory diseases or disorders. They use oxygen, compressed air or ultrasonic power to break up solutions and suspensions into small aerosol droplets that are inhaled from the mouthpiece of the device. An aerosol is a mixture of gas and solid or liquid particles.
Jitron Compressor Nebulizer JN-702C is a pneumatic nebulizer that nebulizes specific drugs for inhalation by a patient. It is designed for pediatric and adult patients.
The device is designed for respiratory treatment use at home and hospital or healthcare environment.

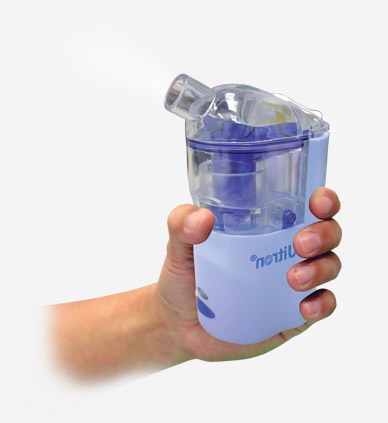

A portable ultrasonic nebulizer offers the flexibility of getting on-time instant treatment for bronchial asthma patients at home or on the move. It is intended for the use of both children and adults at home & outdoor and hence is an ideal tool in every home to administer medicine easily and cost effectively to manage all conditions of bronchial asthma attacks, pneumonia, bronchitis and even the common cold.
Jitron Portable Ultrasonic Nebulizer JN-701U for aerosol therapy is designed and manufactured using the latest technology to characterise high speed (up to 0.7ml / minute) and to achieve extremely silent operation at noise level below 40dB. The Portable Ultrasonic Nebulizer JN- 701U is equipped with a two-valve system which ensures maximum efficiency of inhalation, reducing any drug wastage to the minimum.
It is light weight and portable and can be powered using three different ways
AC adaptor directly connected to Normal 230V/AC power supply
Car connection cable to connect to the cigarette lighter-socket in the car
Rechargeable battery that can be used on the move
Power AC / DC Adapter
(230VAC, 50Hz; 15VDC,1200mA)
Nebulizer Power 12VDC, 800mA
Power Consumption Approx. 12W
Sound Level Below 40dB
Frequency 2.8 M Hz
Particle Range 0.5~5.0μm
Ampoule Capacity Max. 5 ml
Average Rate
Max. 0.7 ml / min (NaCl 0.9% Normal Saline)
Intermittent Use 20 min ON / 45 min OFF
Operation Conditions
10°C~40°C (50°F~104°F); RH 10%~95%
Storage Conditions
-25°C~60°C (-13°F~140°F);
RH 10%~95%
Dimensions
Approx. 85mm x 55mm x 130mm
(without batteries)
Approx. 85mm x 55mm x 180mm (with batteries)
Weight
Approx. 198g (without batteries)
Approx. 440g (with batteries)
Quiet
Extremely quiet operation (noise level below 40dB)
Fast
Fast flow-rate of up to 0.7 ml/min
Safe
Overheat protection
Low battery indication
Effective
Adjustable flow volume
Particulate size of 0.5 to 5 microns increases medication absorption into lungs
Lightweight
Only 198g
