Blood Pressure Monitor

Jitron with a strong and innovative technology, offers reliable and accurate Blood Pressure Monitors that are validated, assuring you most reliable readings.

Irregular Pulse Detection (IPD)

Jitron Digital Wrist Blood Pressure Monitor BPI-801W, Digital Arm Blood Pressure Monitor BPI-901A and Digital Arm Blood Pressure Monitor JBPM-903A are equipped with one of the latest functions in the BP Monitor technology called Irregular Pulse Detection (IPD). This advanced technology detects the appearance of an irregular heartbeat during measurement and gives a warning signal with the reading. An irregular heartbeat may cause or indicate cardiovascular disease.

Blood Pressure Range Indicator

Jitron Digital Arm Blood Pressure Monitor BPI-901A and Digital Arm Blood Pressure Monitor JBPM-903A have an additional feature called 'Blood Pressure Range Indicator'. The indicator gives an immediate suggestion of blood pressure value which is either within normal, borderline or hypertension range.

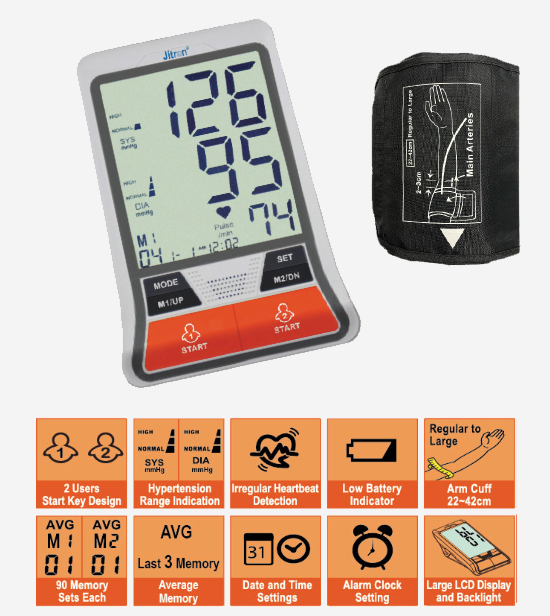

Jitron Digital ARM Blood Pressure Monitor JBPM-903A




POWER ADAPTER (OPTIONAL)
A power adapter can be used to operate the device as an optional power source. More


DOWNLOAD BROCHURE

BP Monitor JBPM-903A

SPECIFICATIONS:

  •   Measuring Range: 30~280 mmHg,
    40~199 beats/min

  •   Calibration Accuracy: Blood Pressure: ± 3 mmHg,
    Pulse Rate: ± 4% of reading

  •   Operating environment:10°C~40°C (50°F~104°F),
    with relative humidity up to 85% (non condensing)

  •   Storage/ Transportation environment: -20°C~+50°C (-4°F~+122°F), with relative humidity up to 85% (non condensing)

  •   Battery life: Approx. 300 operations

  •   Power supply: 4 x 1.5V AA size alkaline batteries

  •   Weight: Approx. 390g (exclude batteries and cuff)

  •   Cuff Circumference: Approx. 22cm ~ 32cm (Regular)
    Approx. 32cm ~ 42cm (Large) optional

  •   Dimensions: Approx. 127mmX188mmX58.5mm (WxHxD)

JITRON DIGITAL ARM BP MONITOR JBPM-903A INTRODUCTION VIDEO

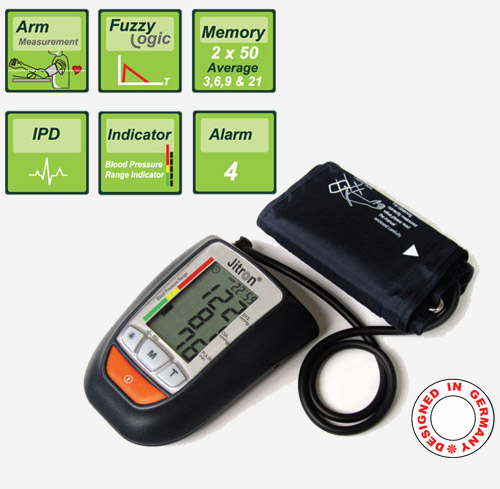

Jitron Digital Arm Blood Pressure Monitor BPI-901A

Jitron Digital ARM Blood Pressure Monitor BPI-901A



POWER ADAPTER (OPTIONAL)
A power adapter can be used to operate the device as an optional power source. More


SPECIFICATIONS:

  •   Display System: Liquid Crystal Display

  •   Measuring Method: Fuzzy logic
    measurement system

  •   Measuring Range: 20~300 mmHg,
    40~200 Pulse/minute

  •   Accuracy: ±3 mmHg, ±5% pulse rate

  •   Inflation: Micro rolling pump

  •   Pressure: Electrical Solenoid valve

  •   Memory: 2 Users X 50 Measurements

  •   Display: LCD (year/date/time, pressure,
    pulse, irregular pulse detection and
    pressure range indicator)

  •   Alarm: 4 Alarms

  •   Low Battery Indicator: Yes

  •   Auto Power-Off: 150 sec w/o operation

  •   Power Source: 4 Alkaline "AA" type batteries (1.5V X 4)

  •   Battery Life: Approx. 250 operations

  •   Operating Environment: +10°C ~ +40°C; RH<85% (+50°F ~ +104°F)

  •   Storage Environment: -10°C ~ +50°C;RH<85% (14°F ~ +122°F )

  •   Cuff Circumference: Approx. 22cm ~ 32cm (Regular)
    Approx. 32cm ~ 42cm (Large) optional

  •   Dimensions: 152(W) x 113(D) x 50(H) mm

  •   Weight: Approx. 486g (including batteries)

JITRON DIGITAL ARM BP MONITOR BPI-901A INTRODUCTION VIDEO

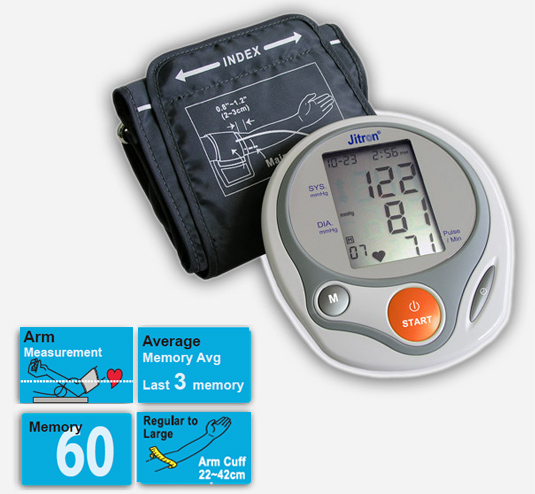

Jitron Digital Arm Blood Pressure Monitor JBPM-902A




POWER ADAPTER (OPTIONAL)
A power adapter can be used to operate the device as an optional power source. More


DOWNLOAD BROCHURE

BP Monitor JBPM-902A

SPECIFICATIONS:

  •   Measuring Range:
    Blood pressure: 30~280 mmHg
    Pulse Rate: 40~199 beats/min

  •   Calibration Accuracy:
    Blood pressure: ±3 mmHg
    Pulse Rate: ±4% of reading

  •   Operating Environment:
    10°C ~ +40°C( 10°F ~ 104°F )
    with relative humidity up to 85% (non condensing)

  •   Storage/Transportation Environment:
    20°C ~ +50°C( -4°F ~ +122°F )
    with relative humidity up to 85% (non condensing)

  •   Battery: 4 X 1.5 AA alkaline batteries
    Battery life: Approx. 300 Operations

  •   Cuff Circumference: Approx. 22cm ~ 32cm (Regular)
    Approx. 32cm ~ 42cm (Large) optional

  •   Dimension: 130mm X 150mm X 65mm (W X H X D)

JITRON DIGITAL ARM BP MONITOR JBPM-902A INTRODUCTION VIDEO

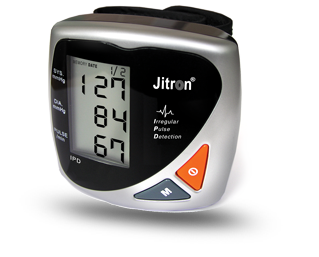

Jitron Digital Wrist Blood Pressure Monitor BPI-801W

Jitron Digital Wrist blood pressure monitor BPI-801W

Fuzzy Logic technology

Irregular pulse detection

SPECIFICATIONS:

  •   Display System: Liquid Crystal Display

  •   Measuring Method: Oscillometric

  •   Fuzzy logic measurement system

  •   Measuring Range: 20~300 mmHg
    40~200 Pulse/minute

  •   Accuracy: ±3 mmHg, ±5% pulse rate

  •   Inflation: Electrical rolling pump

  •   Pressure: Solenoid valve

  •   Memory: 85 Measurements

  •   Display: LCD (year/date/time, pressure, pulse and irregular pulse detection)

  •   Low Battery Indicator: Yes

  •   Auto Power-Off: 150 sec w/o operation

  •   Power Source: 2 Alkaline "AAA" type

  •   Battery: (1.5V X 2)

  •   Battery Life: Approx. 250 operations

  •   Operating Environment:
    +10°C ~ +40°C; RH<85% (+50°F ~ +104°F)

  •   Storage Environment: -20°C ~ +50°C;

  •   RH<85% (-4°F ~ +122°F )

  •   Cuff Size: 13.6 ~ 19.5 cm

  •   Dimensions: 80(W) x 76(D) x 26(H) mm

  •   Weight: Approx. 130g (including batteries)

JITRON DIGITAL WRIST BP MONITOR BPI-801W INTRODUCTION VIDEO

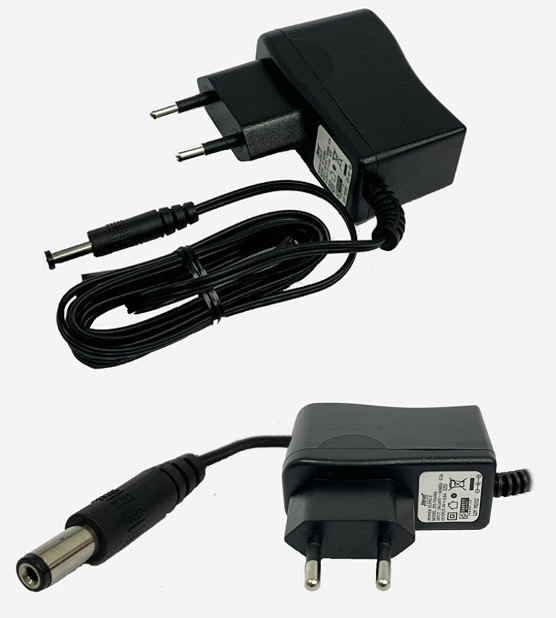

Jitron Power Adapter JPA-608B

Jitron Power Adapter JPA-608B is manufactured by taking care the safety features for safe usage as an AC/DC adapter.

SPECIFICATIONS:

  •   Input:
    100-240v ~ 50/60Hz 0.3A ~ EUROPLUG TYPE C

  •   Output:
    6V -- 0.8A

Output Polarity:

Output PIN:
